Ceramic ferrite magnets

Ceramic ferrite magnets offer great resistance and durability qualities for a relatively low cost.

This type of magnet is produced from Strontium ferrite powder, formed in a press, while being subjected to a magnetic field.

This process allows the magnetic field direction to be chosen.

Main qualities:

  • Relatively low cost,
  • High resistance of the magnet to demagnetisation,
  • High resistance in difficult environmental conditions, without needing to be recovered to protect the magnet,
  • High resistance to oxidisation,
  • Durability.

Technical characteristics

Click on the tabs below to access information according to product type.

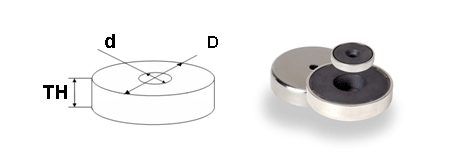

  • POT ferrite magnets

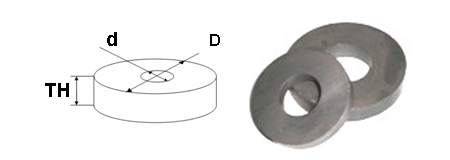

  • RING ferrite magnets

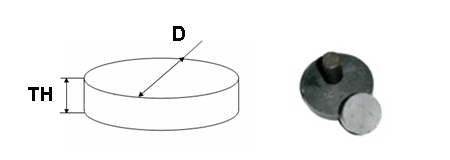

  • DISK ferrite magnets

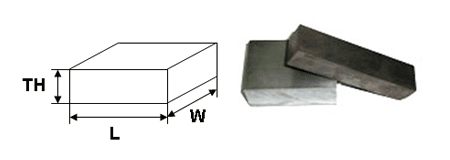

  • BLOCK ferrite magnets
ferrite magnets
Ferrite Magnet - NdFeB
[all dimensions in mm]
D25xTH7
D25xd8xTH7
D32xd8xTH7
D40xd10xTH8
D50xd12xTH10
D63xd15xTH14
D80xd18xTH16

Special design :

In accordance with your needs and your specifications, we are able to:

  • Modify an existing product,
  • Create a totally bespoke product.

Our specialist engineering teams are also available to you to help you in your research, your studies and projects.

ferrite magnets
Ferrite Magnet - NdFeB
[all dimensions in mm]
D10xd2xTH3
D10xd5xTH2
D11.3xd7.6xTH3
D13.5xd5.2x2
D13.5xd5.2x3
D16xd4.5xTH12
D17.5xd7.2xTH3
D36xd18xTH8
D60xd23xTH8
D60xd23xTH12
D60xd23xTH18
D60xd24xTH8
D60xd24xTH13
D60xd32xTH15
D72xd32xTH12
D86xd32xTH15
D90xd45xTH13
D95xd56xTH15
D115xd43xTH18
D134xd57xTH20
D184xd80xTH20

Special design :

In accordance with your needs and your specifications, we are able to:

  • Modify an existing product,
  • Create a totally bespoke product.

Our specialist engineering teams are also available to you to help you in your research, your studies and projects.

ferrite magnets
Ferrite Magnet - NdFeB
[all dimensions in mm]
D3xTH3
D4xTH19
D5xTH4
D6xTH4
D6xTH8
D8xTH5
D12xTH3.8
D12xTH5
D12xTH6
D18xTH4
D25xTH4

Special design :

In accordance with your needs and your specifications, we are able to:

  • Modify an existing product,
  • Create a totally bespoke product.

Our specialist engineering teams are also available to you to help you in your research, your studies and projects.

ferrite magnets
Ferrite Magnet - NdFeB
[all dimensions in mm]
L11.5xW5xTH1.6
L12xW12xTH6
L13xW1xTH2
L14xW3xTH1.3
L19xW7xTH3
L19xW17.5xTH3
L25xW12xTH9
L25xW12xTH12
L25xW13.3xTH8
L25xW15.5xTH12.7
L34xW12.5xTH1.2
L36xW47xTH30
L38xW25xTH10
L40XW25XTH6
L40XW25XTH10
L50xW22.5xTH16
L72xW47xTH30
L72xW50xTH4
L120xW70xTH30
L150xW50xTH25.4
L150xW100xTH20
L150xW100xTH25.4

Special design :

In accordance with your needs and your specifications, we are able to:

  • Modify an existing product,
  • Create a totally bespoke product.

Our specialist engineering teams are also available to you to help you in your research, your studies and projects.
