Rare earth magnets

Neodyme rare earth magnets

This type of magnet has the advantage of extremely increased magnetic energy.  It is used in applications which require high power magnets, and also in applications where the size and the reduction of weight are favouring factors.

N52 rare earth magnets

The force of Neodyme rare earth magnets is measured on a scale of 24MGOe-52MGOe.

N52 is the most powerful magnet that is available today.

This type of magnet is used in specific applications which requires a maximum magnetic force in a reduced space.

Their magnetic force is an excellent alternative to ferrite magnets.

Samarium Cobalt (SmCo) rare earth magnets

SmCo magnets are the only ones to cope with temperatures up to 550°C.

This type of magnet is very powerful, but also very fragile, it can become cracked or chipped. It must be handled with care, and the equipment in which it is integrated, must have appropriate protection.

Its coercive field is a lot more resistant to demagnetisation than Neodyme magnets.

It also has the advantage of having a high resistance to corrosion.

Technical characteristics

Click on the tabs below to access information according to product type.

  • RING Neodyme Magnet
  • DISK Neodyme Magnet
  • BLOCK Neodyme Magnet

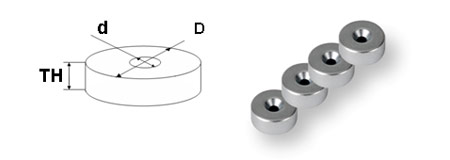

RING Neodyme Magnet
Neodymium Magnet - NdFeB
[all dimensions in mm]
D11xd2.1xTH5
D13.8xd5xTH2
D18.5xd5.5xTH3
D19xd14xTH5
D72xd32xTH4

Special design :

In accordance with your needs and your specifications, we are able to:

  • Modify an existing product,
  • Create a totally bespoke product.

Our specialist engineering teams are also available to you to help you in your research, your studies and projects.

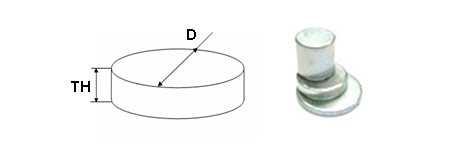

DISK Neodyme Magnet
Neodymium Magnet - NdFeB
[all dimensions in mm]
D2xTH12
D3xTH1.5
D3xTH2
D3xTH3
D3.5TH12
D4xTH2
D4xTH5
D4xTH6
D4xTH10
D4.7xTH1.5
D5xTH2
D5xTH10
D5xTH12
D5xTH18
D5xTH20
D6xTH4
D6xTH20
D6.3xTH6
D7xTH2
D8xTH1
D8xTH2
D8xTH3
D8xTH4
D8xTH5
D9xTH3
D9.52xTH6.35
D10xTH2.5
D10xTH4
D10xTH7
D10xTH8
D12xTH3
D12xTH5
D15xTH15
D20xTH3
D20xTH5
D25xTH12
D26xTH3

Special design :

In accordance with your needs and your specifications, we are able to:

  • Modify an existing product,
  • Create a totally bespoke product.

Our specialist engineering teams are also available to you to help you in your research, your studies and projects.

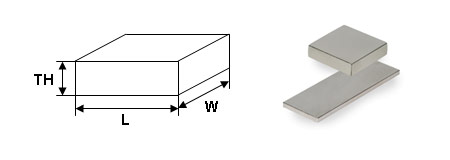

BLOCK Neodyme Magnet
Neodymium Magnet - NdFeB
[all dimensions in mm]
L3xW2xTH1 (NCND)
L3xW2xTH3.9
L3.2xW3.2xTH19
L5xW5xTH2
L6xW6xTH1.3
L15xW6xTH3
L15xW10xTH8
L16xW10XTH2
L16xW10XTH16
L19xW12.7xTH2.3xd4.5
L20xW10xTH5
L20xW15xTH3
L20xW15xTH4
L20xW15xTH5
L24xW2.3xTH6
L35xW5.3xTH2.5
L40xW5.3xTH2.5
L50xW50xTH35
L65xW20xTH1
L83xW63xTH25
L90xW33xTH12
L92xW38xTH30

Special design :

In accordance with your needs and your specifications, we are able to:

  • Modify an existing product,
  • Create a totally bespoke product.

Our specialist engineering teams are also available to you to help you in your research, your studies and projects.
